Raw Water Supply to Hindalco Industries Ltd

Scope of Work :

Water Pipe Line,33 KV Transmission Line,Intake well & Jackwell cum pumping system for Hindalco Industries Ltd,Unit Aditya Alumina Refinery,Kansariguda,Odisha

Salient Features

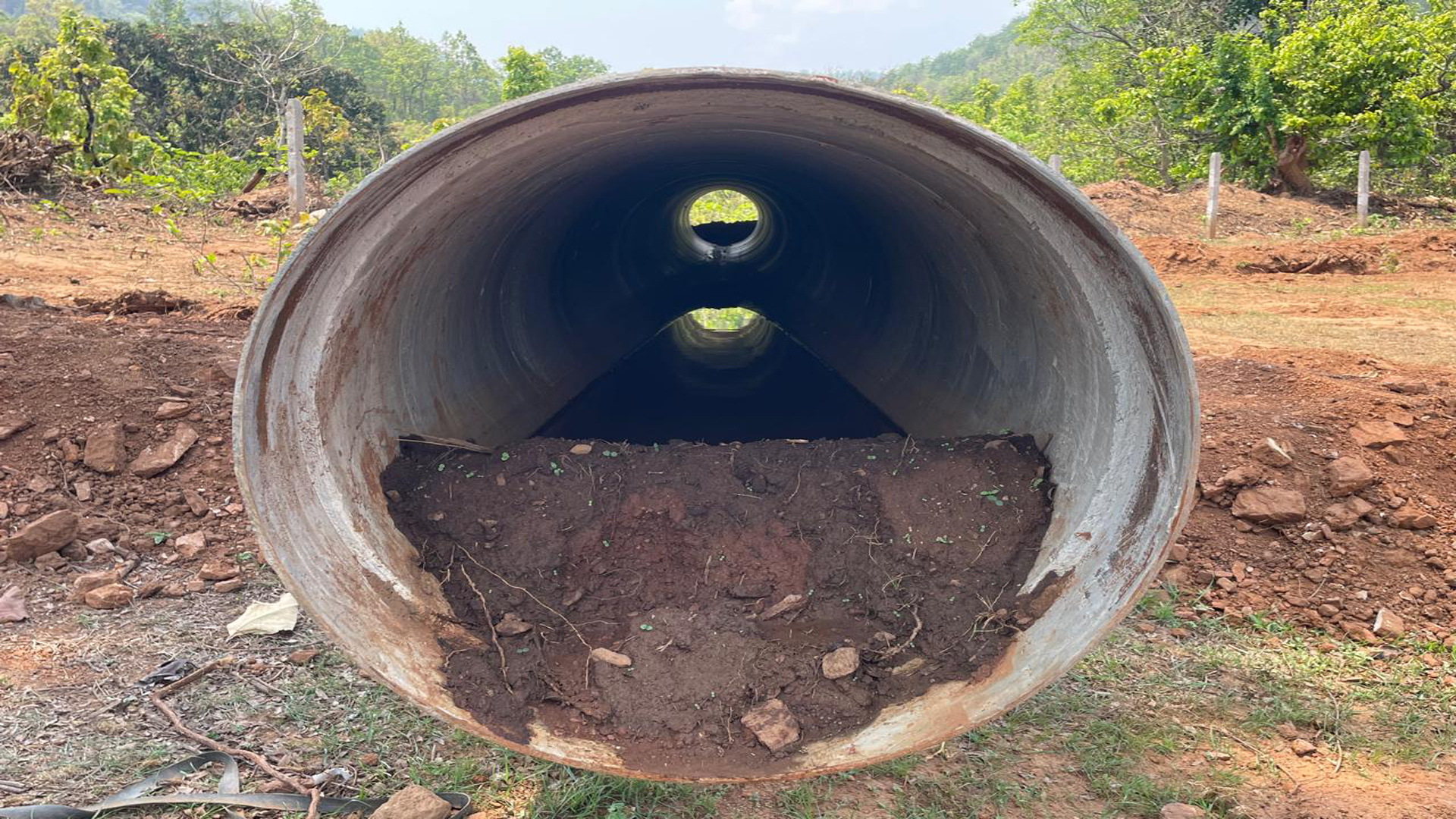

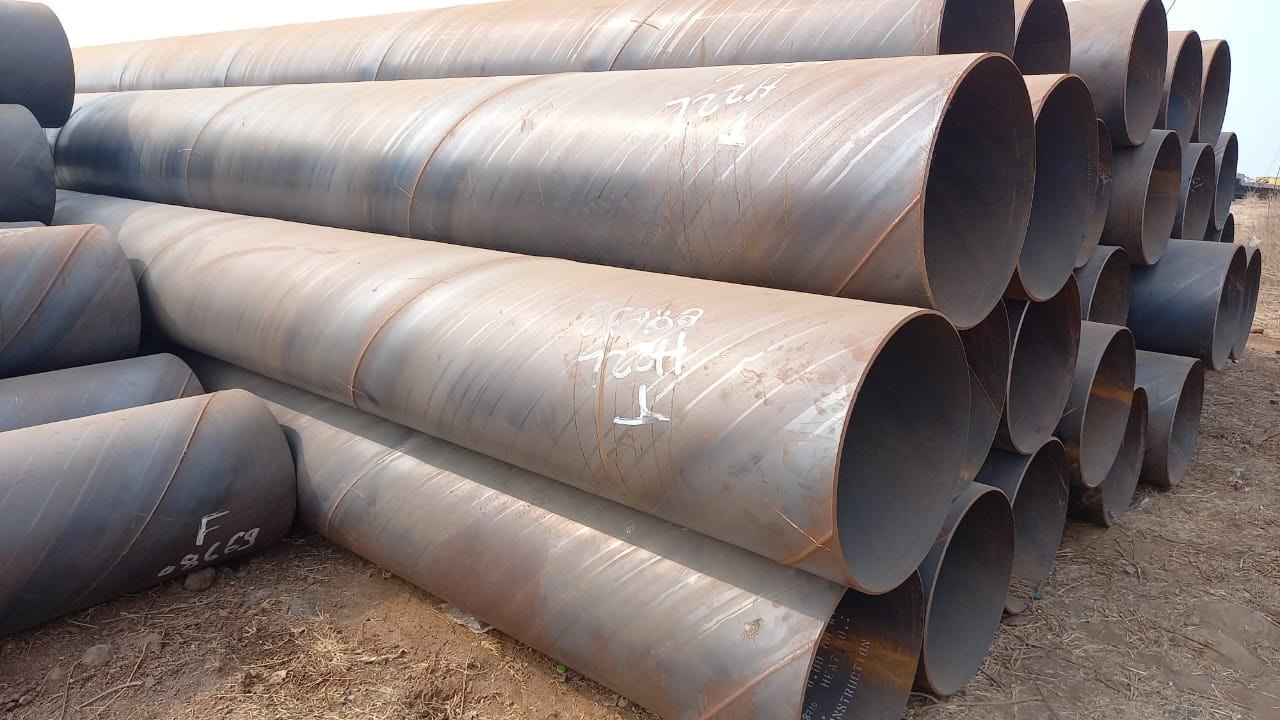

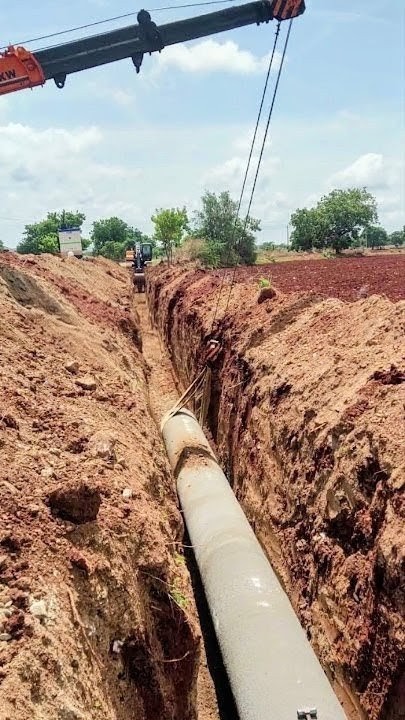

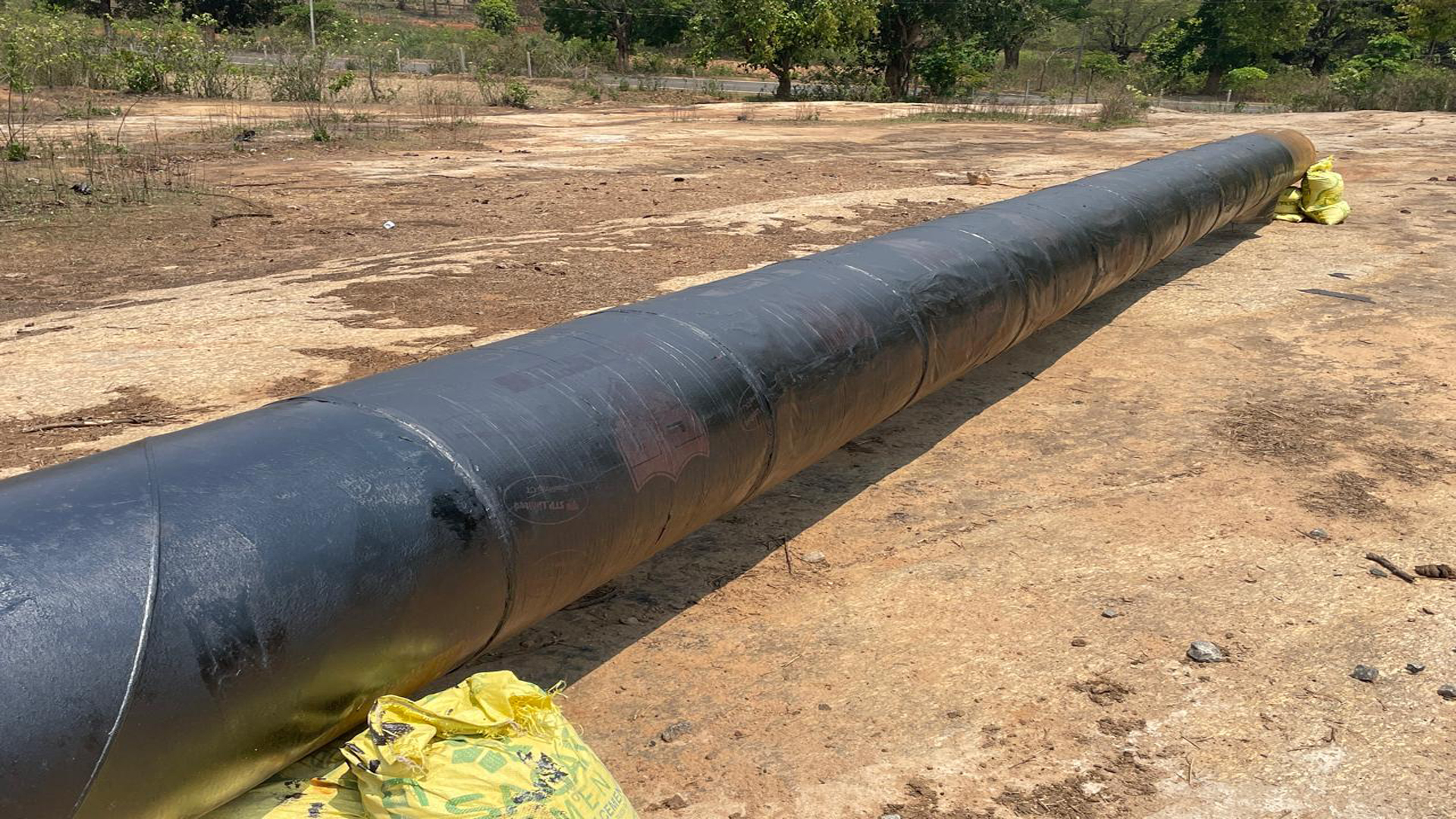

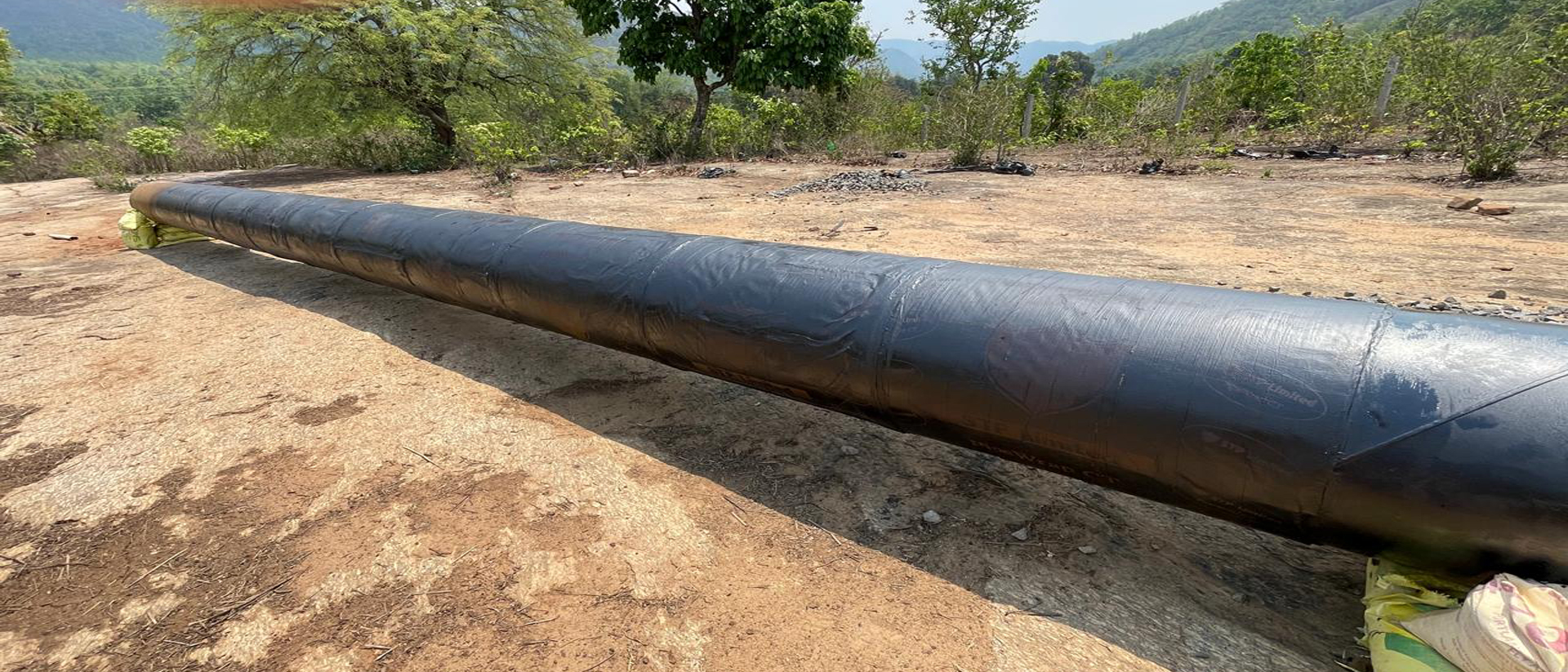

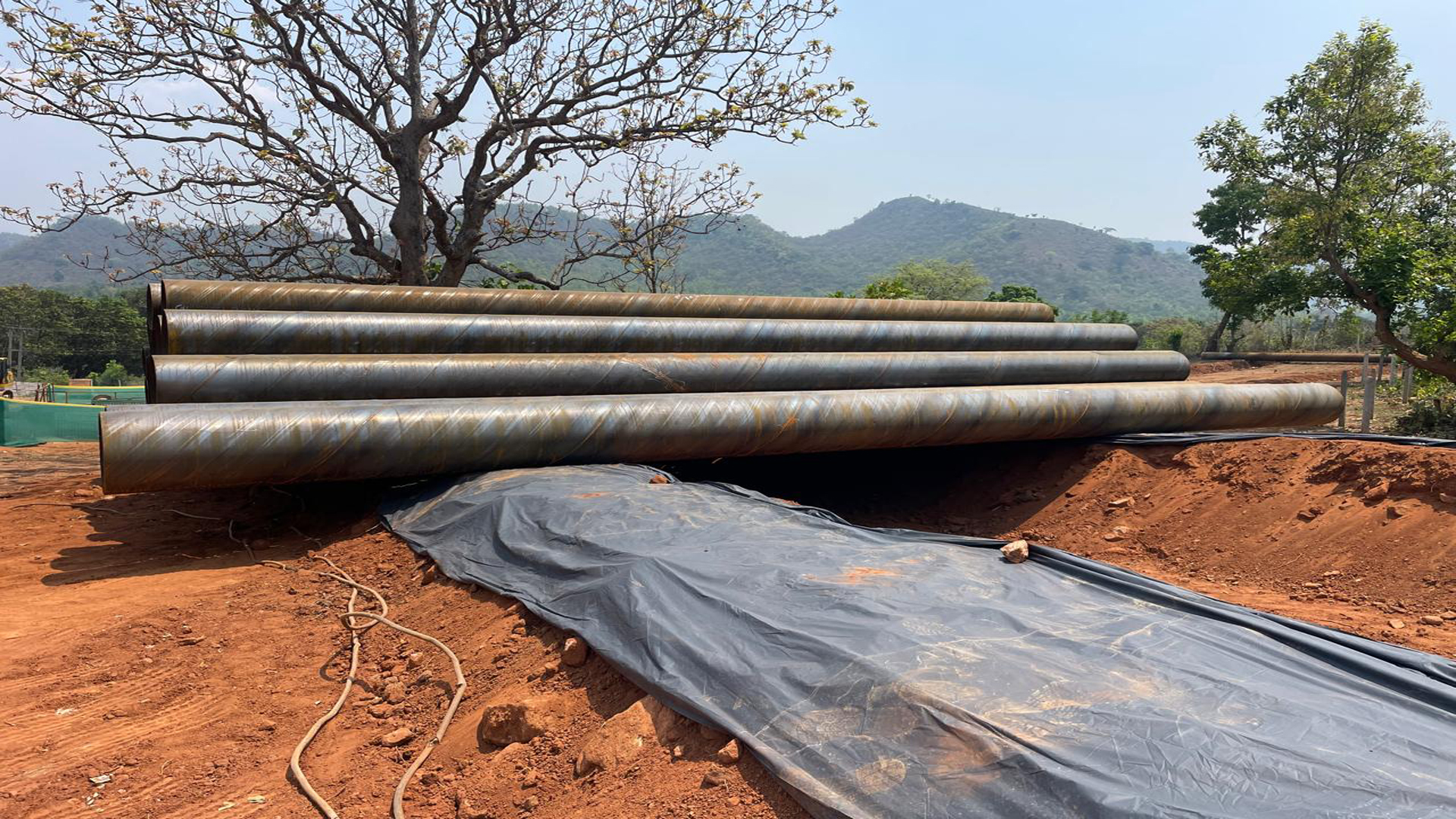

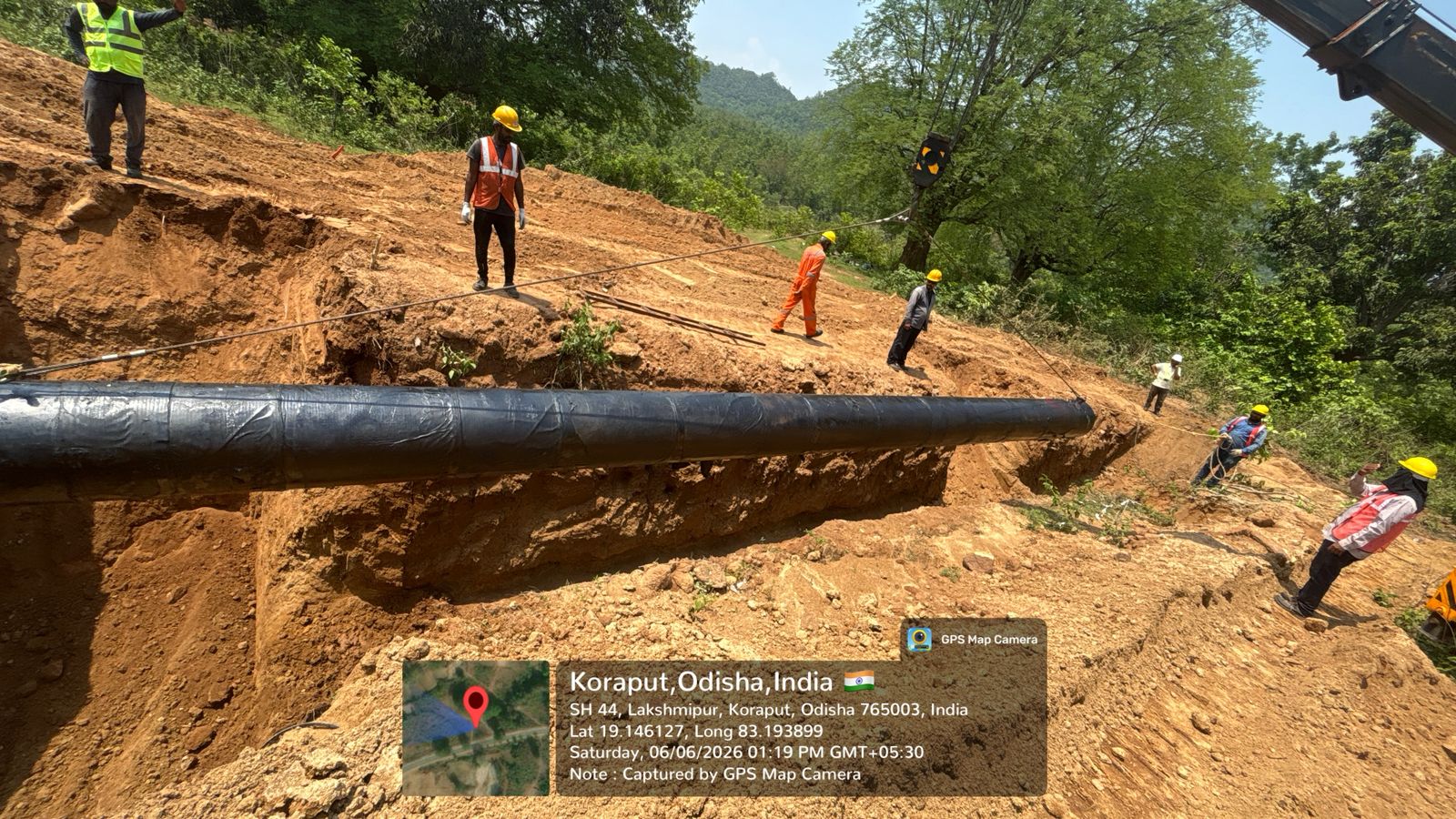

Raw water Rising Main/Pumping main MS Pipe Line 600mm Dia : 17 KM

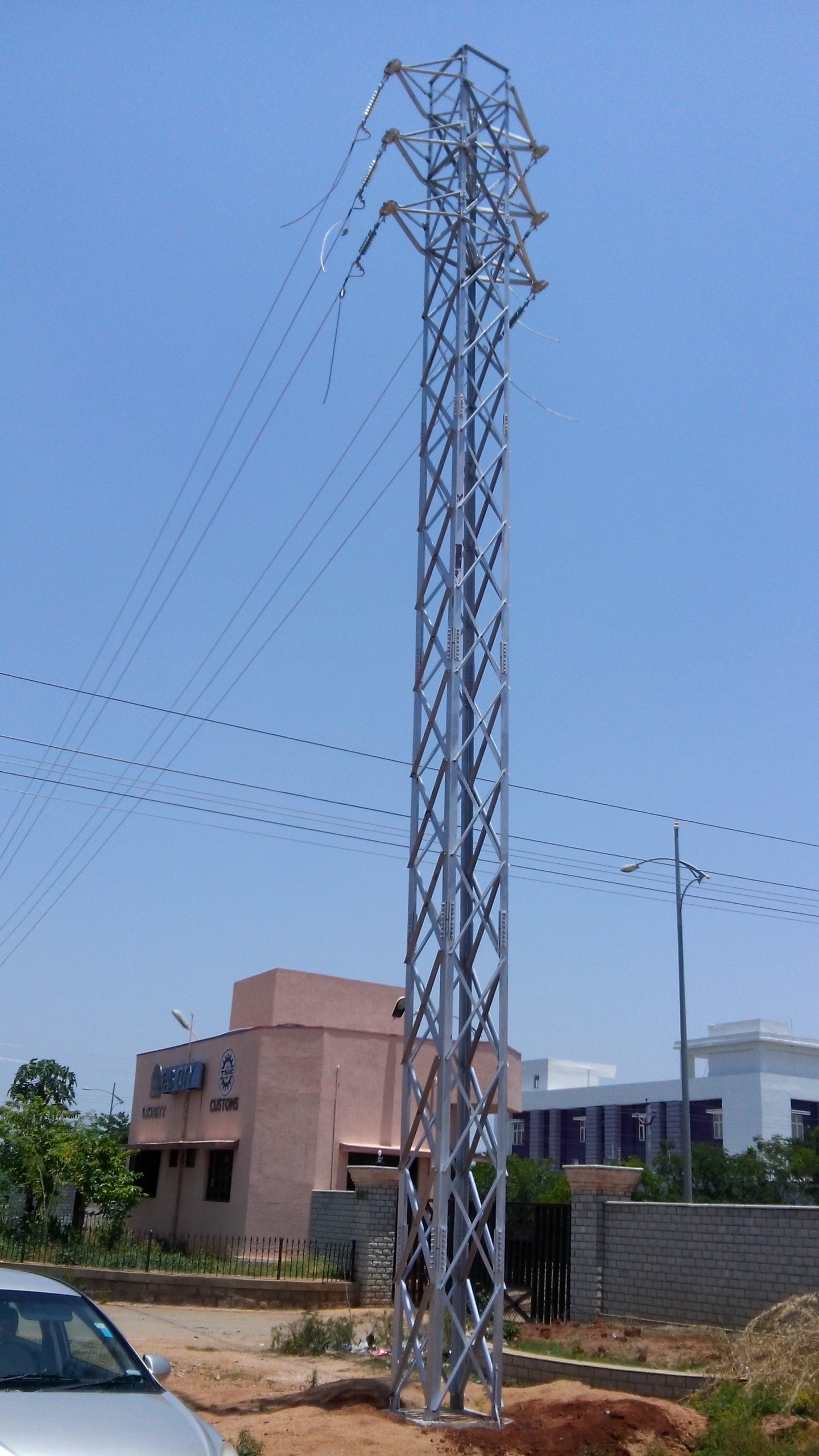

33 KV Double Circuit Transmission Line with 19 m Height M type D/C tower suitable for dog conductor : 17 KM

Power Transformers 33000 / 6600 Volt, 2500 KVA : 2 Nos

HT VCB Panels 33 KV 800A VCB Panels : 2 Nos

6.6KV Switchgear Panel - 6.6kV, 630A VCB 18.4KA : 1 Set

Pump with Motor - 6.6 KV, 650 KW HT : 3 Nos

Soft Starters with inbuilt Power Factor correction banks of 250 KVAR - 6.6 KV, 650 KW : 3 Nos

Motorized BFV's 350mm Dia and 600mm Dia : 1 Lot

Non Return Valves (NRV) 350mm Dia & 600mm Dia : 1 Lot

PLC/SCADA Automation along with Field Measuring Instruments (Level Transmitter, Electromagnetic Flow Meter, Pressure Transmitter & Pressure Gauge) : 1 Lot

EOT Crane 7.5 Ton Capacity : 1 No

Surge Protection System : 1 Lot

Intake well Dia 4 mtr and Height 9.5 mtr : 1 No

Jack Well Cum Pump House Dia 8 mtr and Height 16.5 mtr : 1 No
